供應bliley BQCSA/BQCT1/BQCSQ等型號晶體

發布時間：2024-01-22 15:46:47     瀏覽：738

PackageTypeFreq RangeTemp RangeStabilityDatasheet
BQCSA5.0mm x 7.0mmSMD5.5 to 125MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSB6.0mm x 3.5mmSMD8 to 125MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSC5.0mm x 3.2mmSMD10 to 150MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSD4.0mm x 2.5mmSMD12 to 54MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±25ppm
BQCSF2.5mm x 2.0mmSMD12 to 60MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSG2.0mm x 1.6mmSMD16 to 60MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSM3.2mm x 2.5mmSMD10 to 150MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSN1.6mm x 1.2mmSMD24 to 54MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSP6.0mm x 3.5mmSMD8 to 125MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCSQ1.6mm x 1.0mmSMD32.768kHz-20°C to +70°C,
-40°C to +85°C		-0.04ppm/°C^2
BQCST3.2mm x 1.5mmSMD32.768kHz-20°C to +70°C,
-40°C to +85°C		-0.04ppm/°C^2
BQCSV5.0mm x 3.2mmSMD8 to 80MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±30ppm,
±50ppm
BQCSW8mm x 8mmSMD10 to 150MHz0°C to +70°CB
-20°C to +70°C
-40°C to +85°C		±25ppm
±50ppm
±100ppm
BQCT1HC-37/U PackageSMD2 to 60MHz-20°C to +70°C,
-40°C to +85°C
10°C to +60°C		±10ppm
±20ppm
±50ppm
BQCT3UM5Thru-Hole10 to 100MHz-10°C to +60°C,
-20°C to +70°C,
-40°C to +85°C		±10ppm,
±20ppm,
±50ppm
BQCTHHC-49/UThru-Hole1.536 to 130MHz-10°C to +60°C,
-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCTRHC-51/UThru-Hole500kHz to 350MHz-20°C to +70°C,
-40°C to +85°C		±15ppm,
±20ppm,
±50ppm
BQCTUUM1Thru-Hole10 to 100MHz-10°C to +60°C,
-20°C to +70°C,
-40°C to +85°C		±10ppm,
±20ppm,
±50ppm

更多Bliley 相關產品信息可咨詢立維創展。

推薦資訊

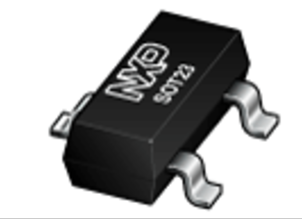

  • PESD24VL2BT低電容雙向雙ESD保護二極管NXP現貨
